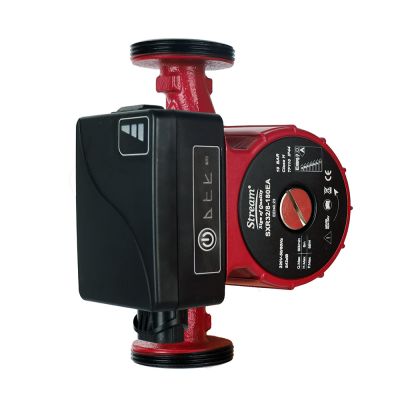

High Efficiency Circulation Pumps——SXR-EA

The EA series is a variable speed circulation pump designed for high energy efficiency and versatility to various system demands. It is built with permanent magnet motor and internal sensor to detect the system changes and adjust the motor speed accordingly to satisfy the system demand.

Applications

.Domestic hot water supply systems

.Domestic heating systems

.Air conditioning systems

.Solar thermal system

.Industrial hot water circulation systems, etc

Features

.A rated energy efficiency, consuming power as low as 5W

.Multiple Control Modes, adapt to different system requirements

.Super Low Noise ≤ 42dB, high comfortability

.Compact Design and Quick Plug-in, simple Installation

.Multiple Protections, more reliability

.PWM signal optional for varying flow requirements across different systems

.Eco design: EEl ≤ 0.23

Working Conditions

.Main power: 230V-50/60Hz

.Power Range: 25W-80W

.Max.Head: 4m-10m

.Max.Flow: 36L/min-66L/min

.Degree of protection: IP44

.Insulation class: H

.Liquid temperature: 2℃ to 110℃

.Ambient Temperature: 0℃ to 40℃

.Max.System Pressure: 1Mpa
