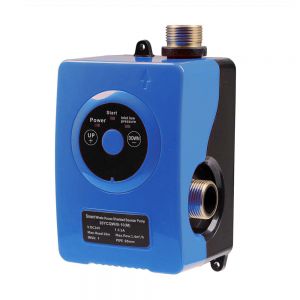

Intelligent Peripheral Pump — SQBN

SQBN is an intelligent peripheral pump. Compared with the common SQB, it has a more intelligent system for users to adjust the starting pressure according to their own needs.

Application

Suitable for pumping well water, family, hotel, canteen, garden irrigation and other clean water pressure boosting, but water heater, central air conditioning and other pressure boosting equipment is also preferable.

Features

Automatic identification of pipe pressure

Automatic regulation of starting pressure

Intelligent overlapping

Sensor and flow switch

Water shortage protection

Water start-up

Temperature protection

Electrophoresis rust prevention

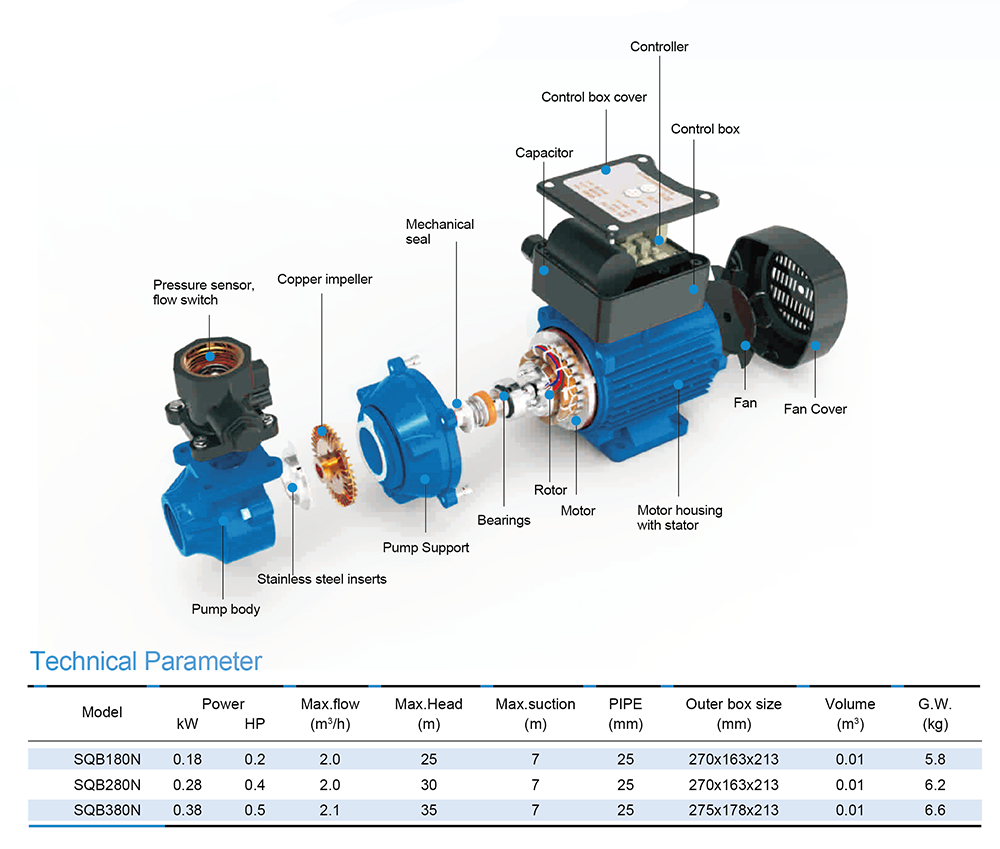

Performance Range

Power: 0.18-0.38 kw

Max flow: 2- 2.1 m³/h

Max head: 25- 35m

Voltage: 220v/50-60Hz

Motor

Electric pump speed:(n=2850r.p.m)Insulation: Class F

Protection:IP44

Continuous service: s1 Thermal protector

Single-phase
