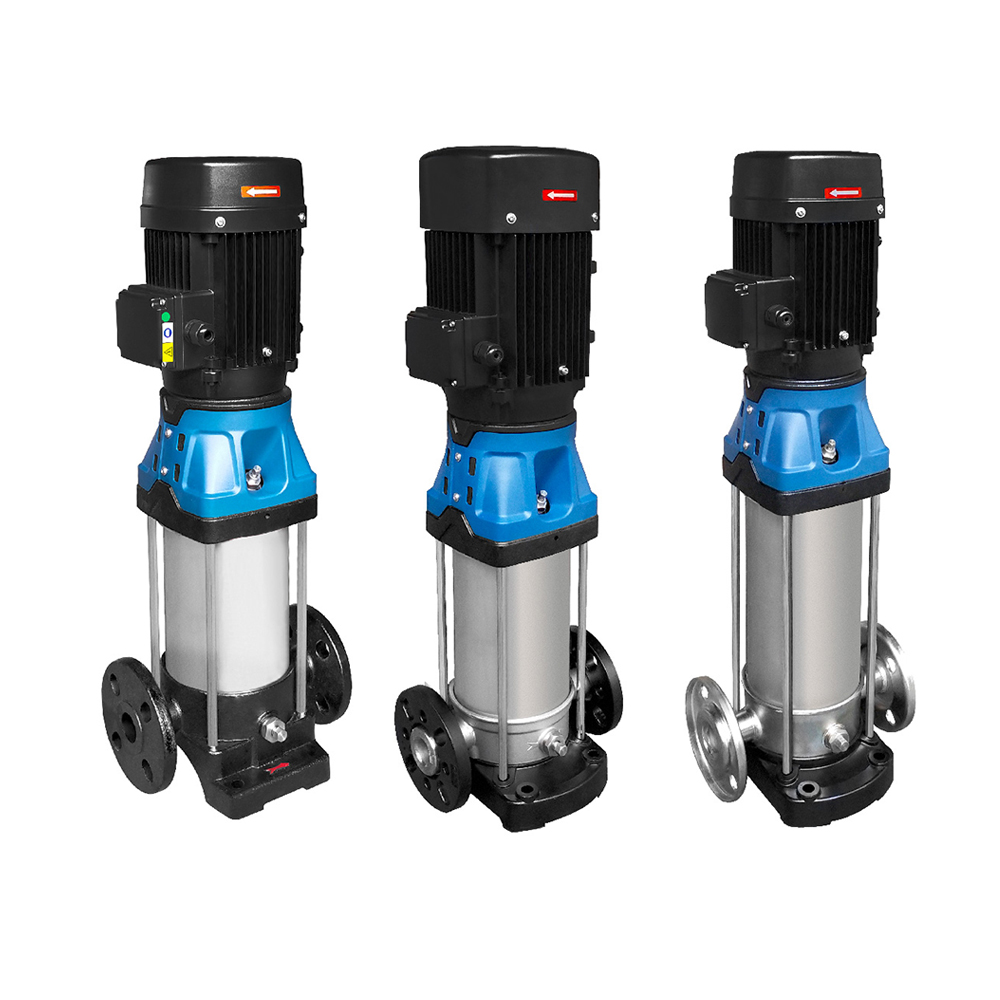

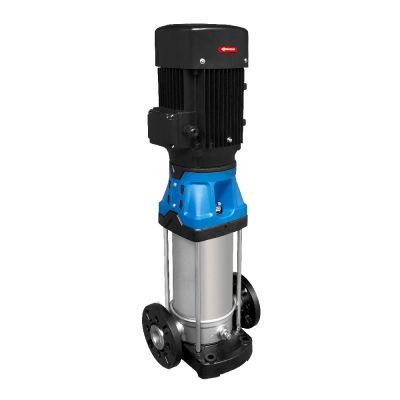

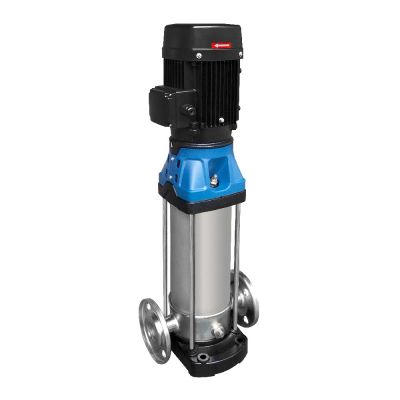

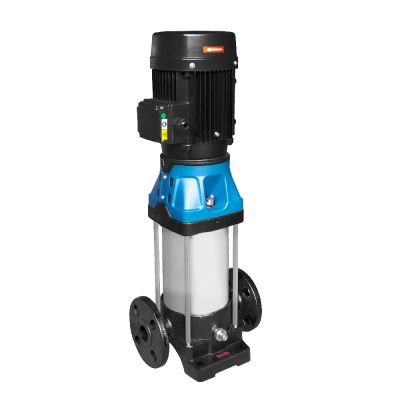

IE3 Motor Efficiency Vertical Multi-Stage Centrifugal Pump——SMA

SMA, SMA-F, SMA-L are non-self-priming vertical multistage centrifugal pump, the pumps are available with standard motor,the inlet and outlet are located at the pump bottom at the same plane (inline type).

All pumps are equipped with a maintenance-free mechanical seal set of the cartridge type.

Motor

.Motor is totally enclosed, air-cooled two pole standard motor.

.Protection grade:IP55Insulation class:F

.Motors of other voltages are available upon request.

.Single phase motors are available from 0.37kw to 2.2kW

.Standard voltage: 50Hz:

 1x220-230/240V

 3x200-220/346-380V

 3x220-240/380-415V

 3x380-415V

Motor Protection

.Single-phase motor have a built in thermal overload switch

.Three-phase motors must be connected to a motor protective

.Circuit breaker according to local regulations

Viscosity

The pumping of liquids with densities or kinematic viscosity higher than those of water will cause a considerable pressure drop, a drop in the hydraulic performance and a rise in the power consumption.

In such situations the pump should be fitted with a larger motor,if in doubt, contact Stream.

Ambient Temperature

.Ambient temperature: maximum+40 C,if the ambient temperature exceeds +40 C, or the pump is installed at an altitude exceeding 1000 meters, the motor must not be fully loaded due to the risk of overheating

.Overheating may result from excessive ambient temperatures or the low density and consequently low cooling effect of the air. In such cases, it may be necessary to use a motor with a higher rated output
