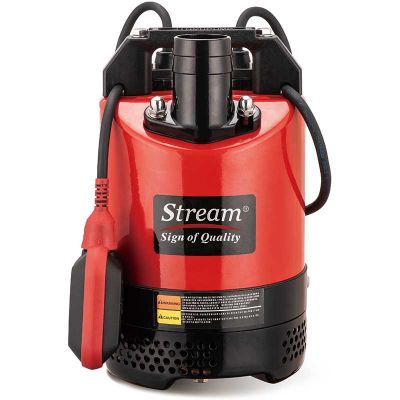

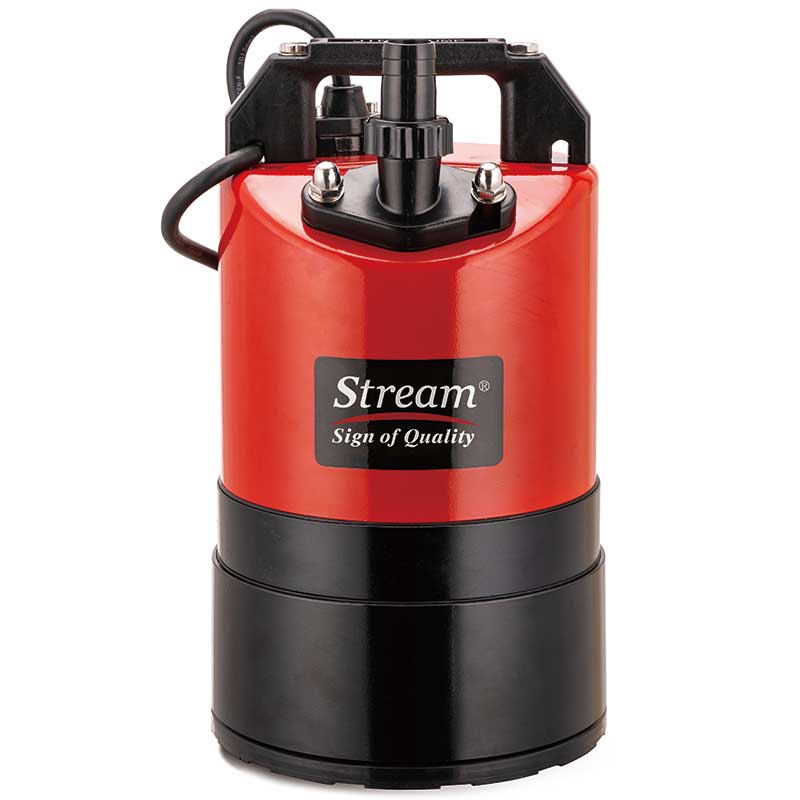

SPK530- 1.0mm Puddle Pump

SPK530/SPK530A Submersible Residual Pumps

Stream SPK530(A) is residual dewatering pump, able to pump down to the floor, even the smallest puddle can be pumped dry. It is the best pump for complete drainage of flat surface.

Even little water could be drained to less than 1mm by SPK530, equipped with an exclusive one-way valve, water can not surge backwards.

Applications:

Ideal for complete drainage water from flat surfaces where a sump is not available;

Removing water from areas like cellars, basements, car parks, rooftops, garages, road ways and construction sites;

Technical Data:

Features and advantages:

Start up at any water level;

The specially designed bottom plate enables the pump to drain down to 1mm water level.;

One-way check valve holds prime and prohibits back flow through pump when stopped;

The water-cooled design provides maximum motor cooling efficiency, allowing continuous duty operation at low water levels;

The discharge connector can be converted into horizontal direction, according to the requirements of use;

Wear-resistant materials are used for easy-wearing parts to improve their durability and maintain pump performance;

The built-in motor protector can automatically cut off power when it over current or overheat, which guarantee safety and reliability when the pump operate in the atrocious environment.

Working conditions:

Maximum immersion depth is 5m;

Liquid temperature:0~+40℃

The PH of liquid is 6.5~8.5;

Passage of solids is less than 6mm;

Materials：

Casing:Rubber

Impeller:TPU 201 insert

Shaft:201 stainless steel

Motor Frame: Aluminum Alloy

Mechanical Seal:Silicon Carbide, with 3 static rings

Cable: 6m Epoxy-glue integrated cable
