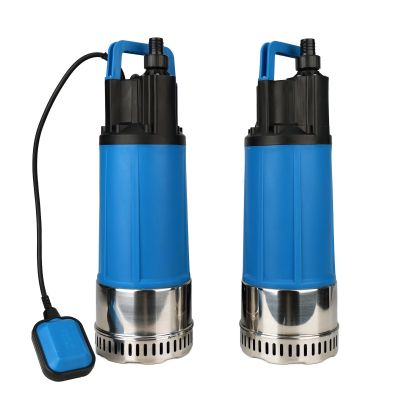

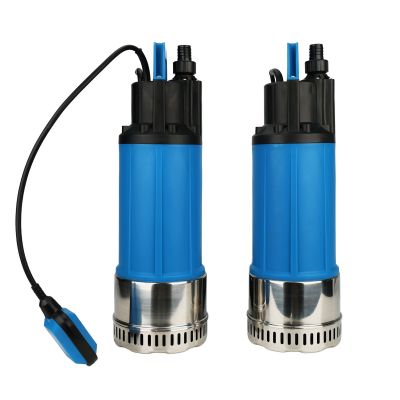

High Head Submersible Pump——SHS series

The high pressure submersible pumps are built with multi impellers for high delivery head demand. They are ideal for pumping clean water from shallow wells and underground tanks, irrigating gardens and dewatering flooded areas, pools, fountains and other applications in general.

Model Selection

SHS——Stainless steel construction for anti-corrosion

SHP——Plastic construction for economy price

Features

.Multi-impellers, high delivery head up to 40m

.Automatic float switch, controls pump automatic on and off

.Built-in pressure sensor, space saving while precise pressure control

.Thermal protector, for motor dry-run protection

Working Conditions

.Liquid Temperature: Up to 35℃

.Protection Class: IPX8

.Insulation Class: B

.Power Supply: 230V/50Hz, Single phase

.Max. Grain Size: 5mm

.Max.Submersion Depth:12m

Performance Curve&Technical Data
