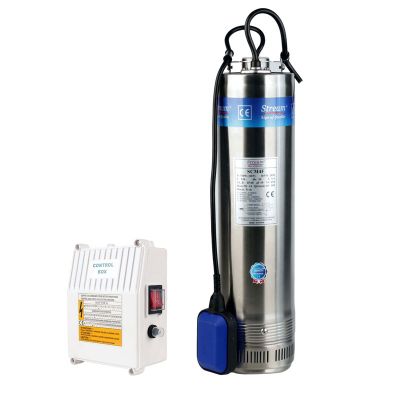

Close-coupled Submersible Well Pumps—SCM series

The SCM/SSCM submersible well pump is a compact and powerful pump designed for use in residential and commercial well applications. It has a 5-inch diameter and close-coupled design that makes it easy to install and maintain. The pump is capable of efficiently and reliably pumping water from wells, reservoirs, and other sources.

Application

Water supply from wells，tanks or reservoirs
Domestic，civil and industrial applications
Irrigation and rain water harvesting systems
Other garden uses

Features

Low cost installation and portability
High pressure water supply up to 102m
Powerful pumping capability up to 6.6m³/h
High efficiency motor for energy saving and longevity
Stainless steel built for durable and long-lasting service
Safety operation by double-end M.seals and lip seal
Customization on motor voltage and control mode

Working Range

Pumping liquid：clean，free of solids and abrasives，non-aggressive
Maximum submersion depth：80m
Maximum fluid temperature：35℃
Maximum solid content：0.15%

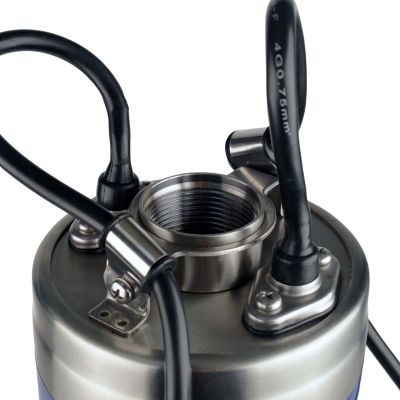

Outlet size：1.25"
Minimum well dia：φ127mm
Protection class：IP68
Insulation class：F

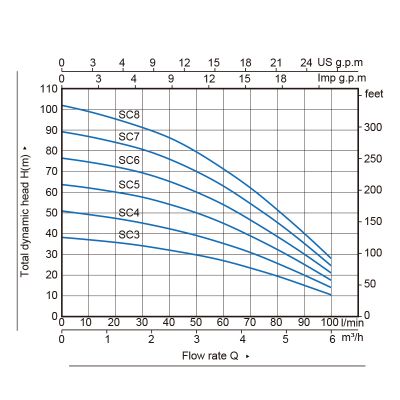

Performance Curve & Technical Data
