6 inch Electric Borehole Pump

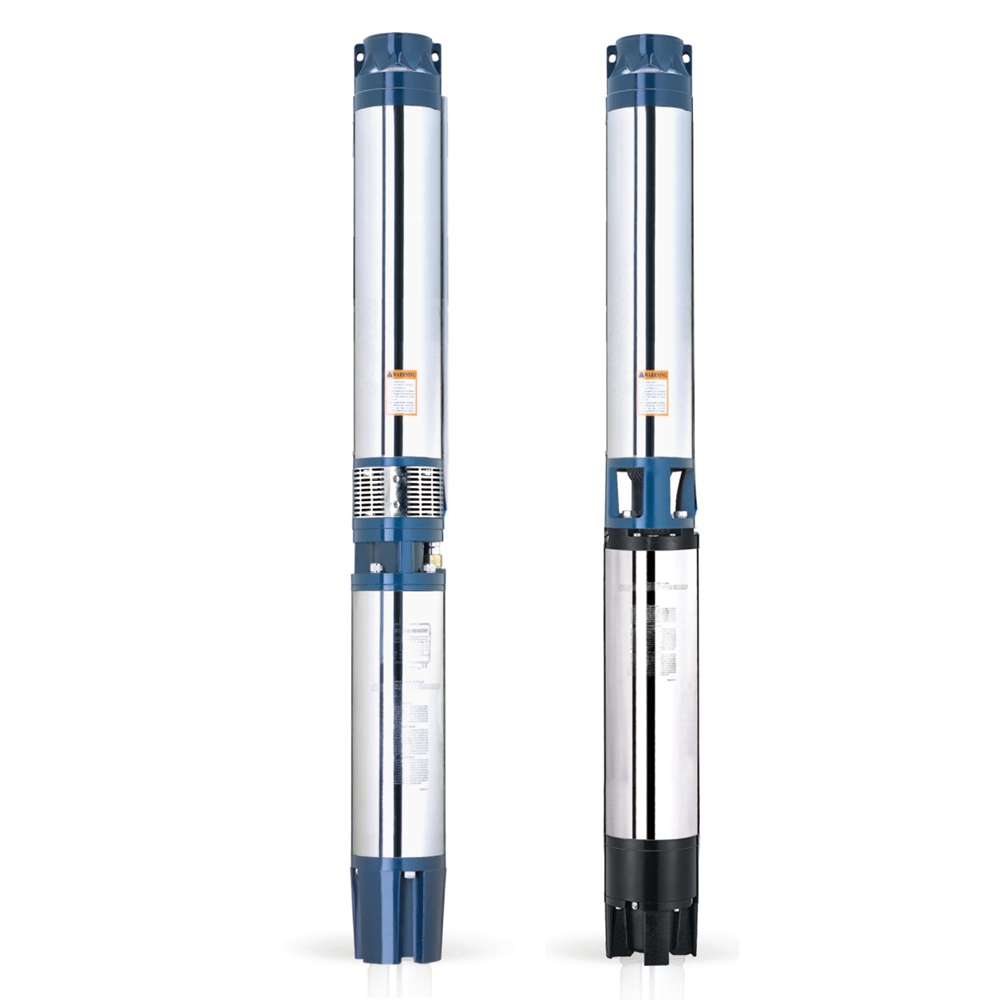

The SR series is specifically designed as a 6-inch electric submersible well pump, built for durability with a cast iron base, connectors, and outlet. The SR model is equipped with a single-phase motor, while the SRT model features a three-phase motor for enhanced power and efficiency.
This robust pump series is ideal for agricultural irrigation, as well as civilian and commercial water supply, offering reliable performance and long-lasting durability in demanding environments.

Application

For water supply wells or reservoirs
For domestic use，for civil and industrial applications
For garden use and irrigation

Features

High efficiency performance
High assembly accuracy ensures reliability
Long service life for lasting performance

Motor and Pump

Rewindable motor
Single-phase：220V-240V/50Hz
Three-phase：380V-415V/50Hz
1-Direct start （1 cable）
2-Star-delta start （2 cables）
Equip with start control box or digital auto-control box
NEMA dimension standards

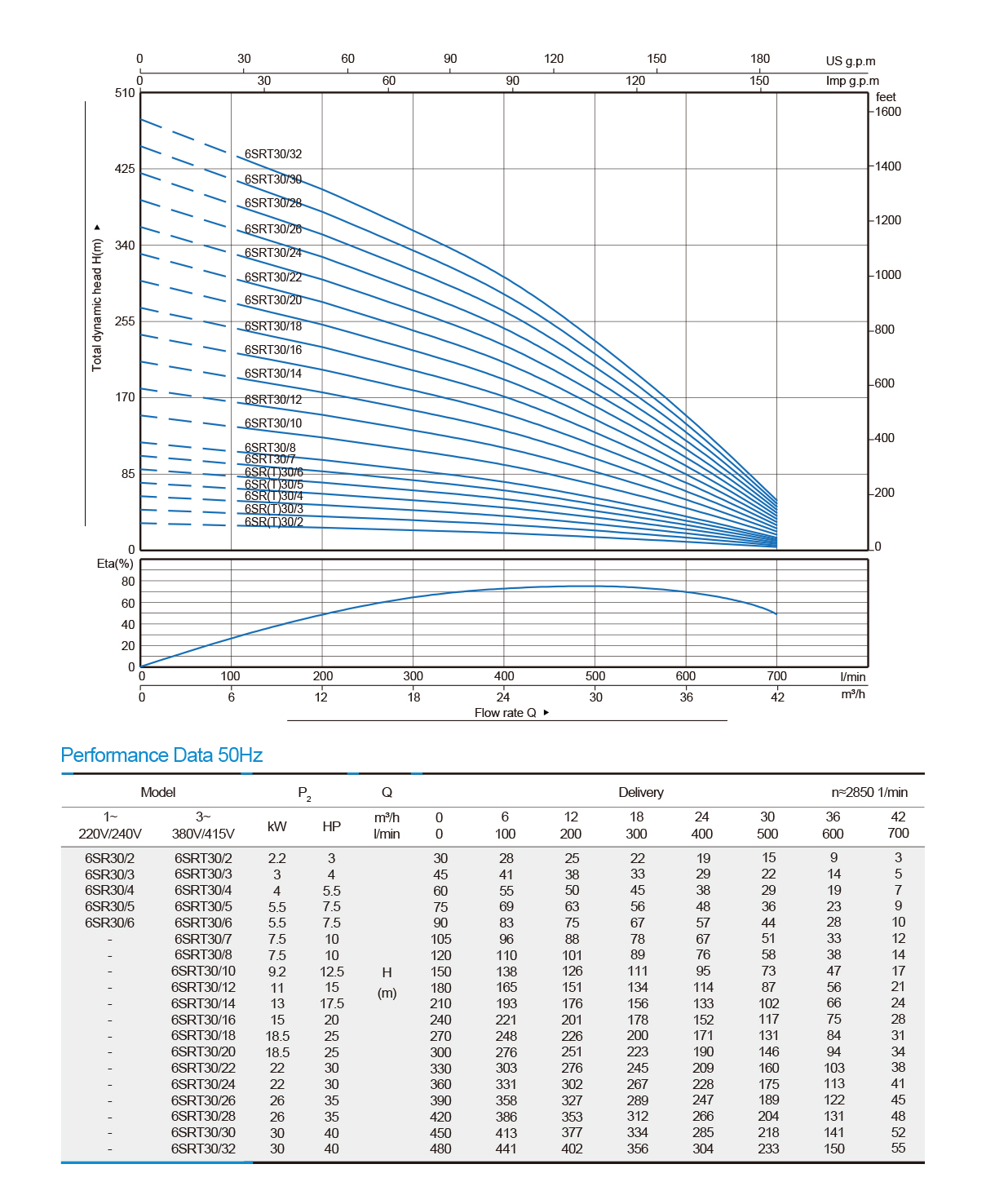

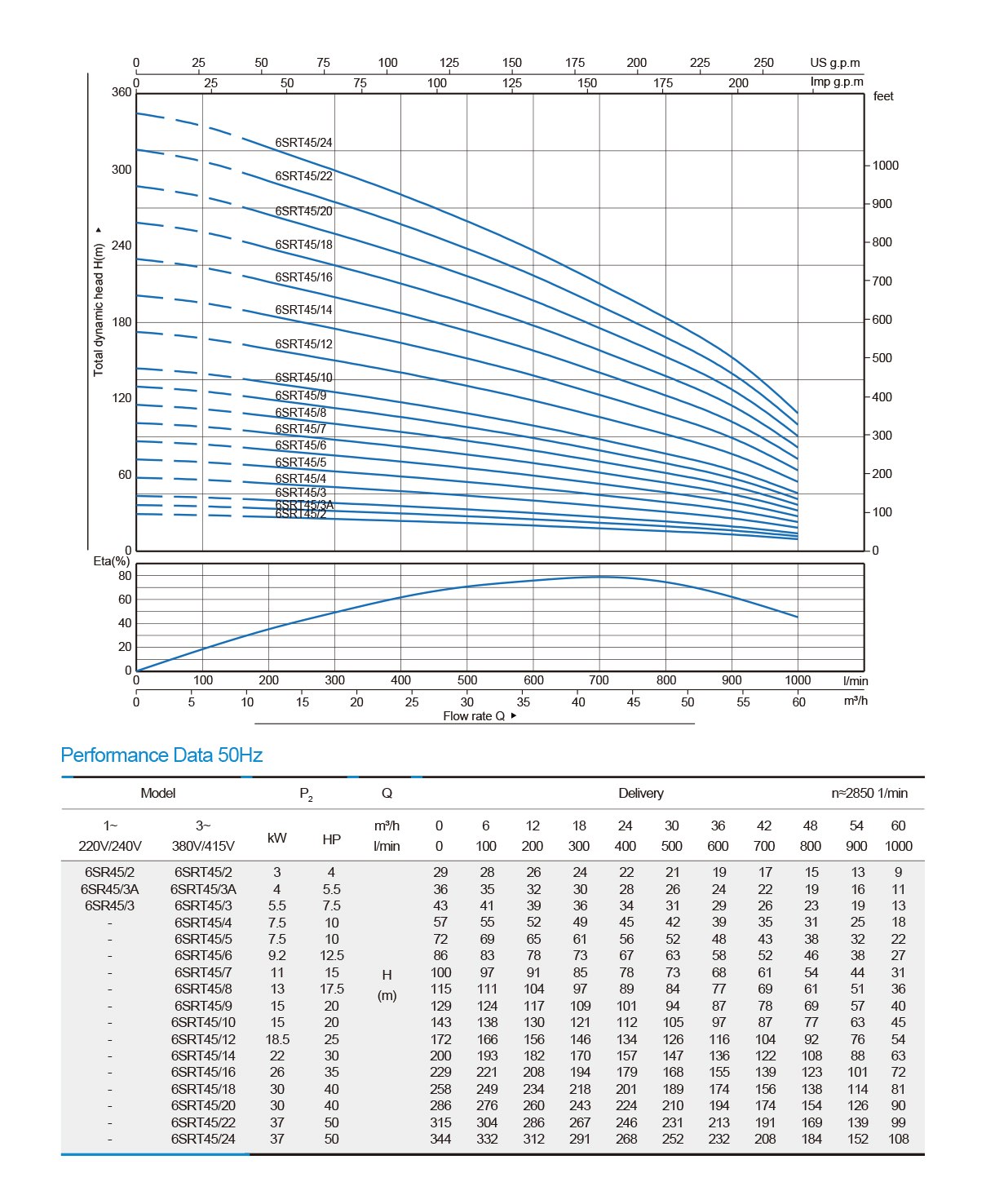

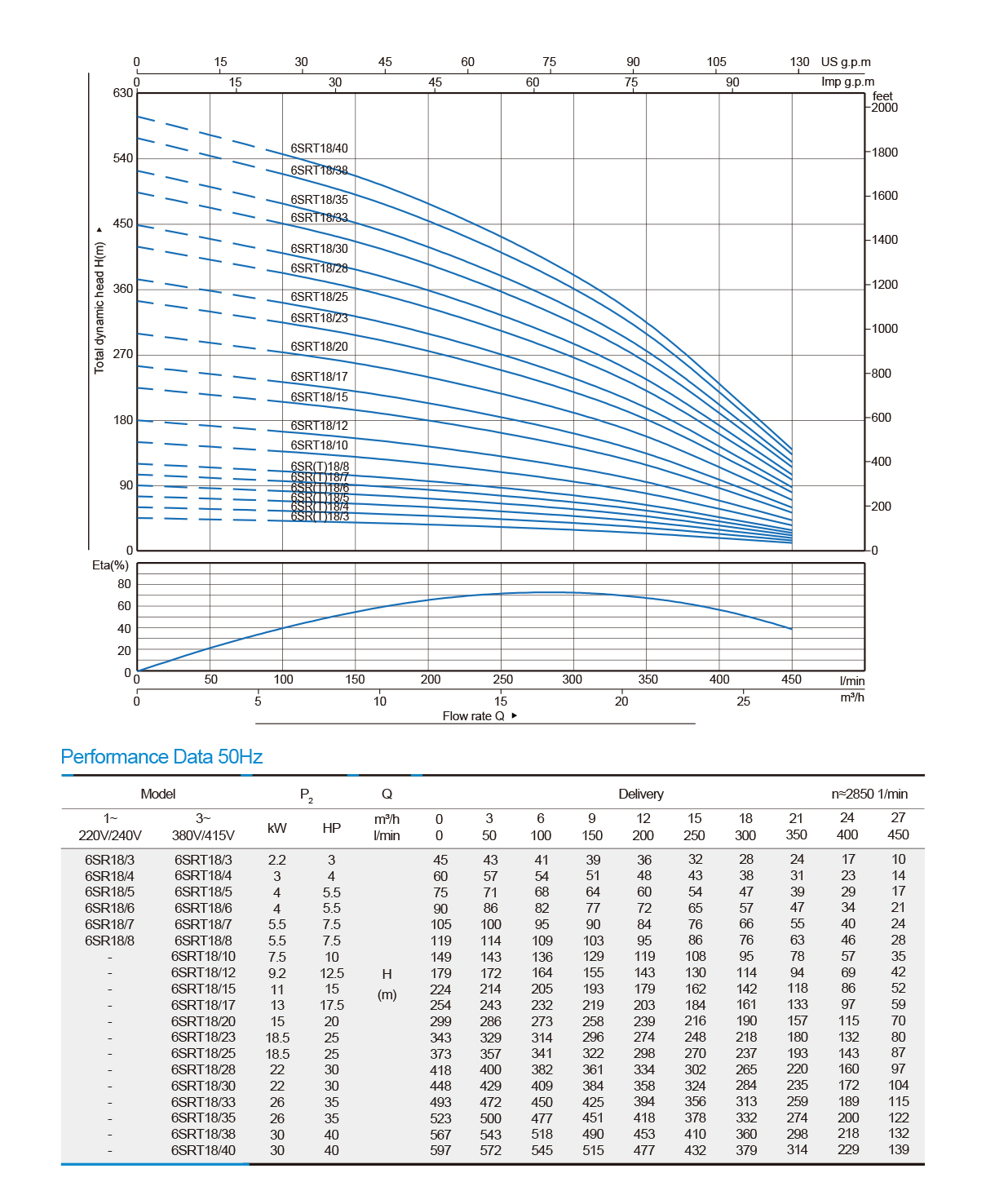

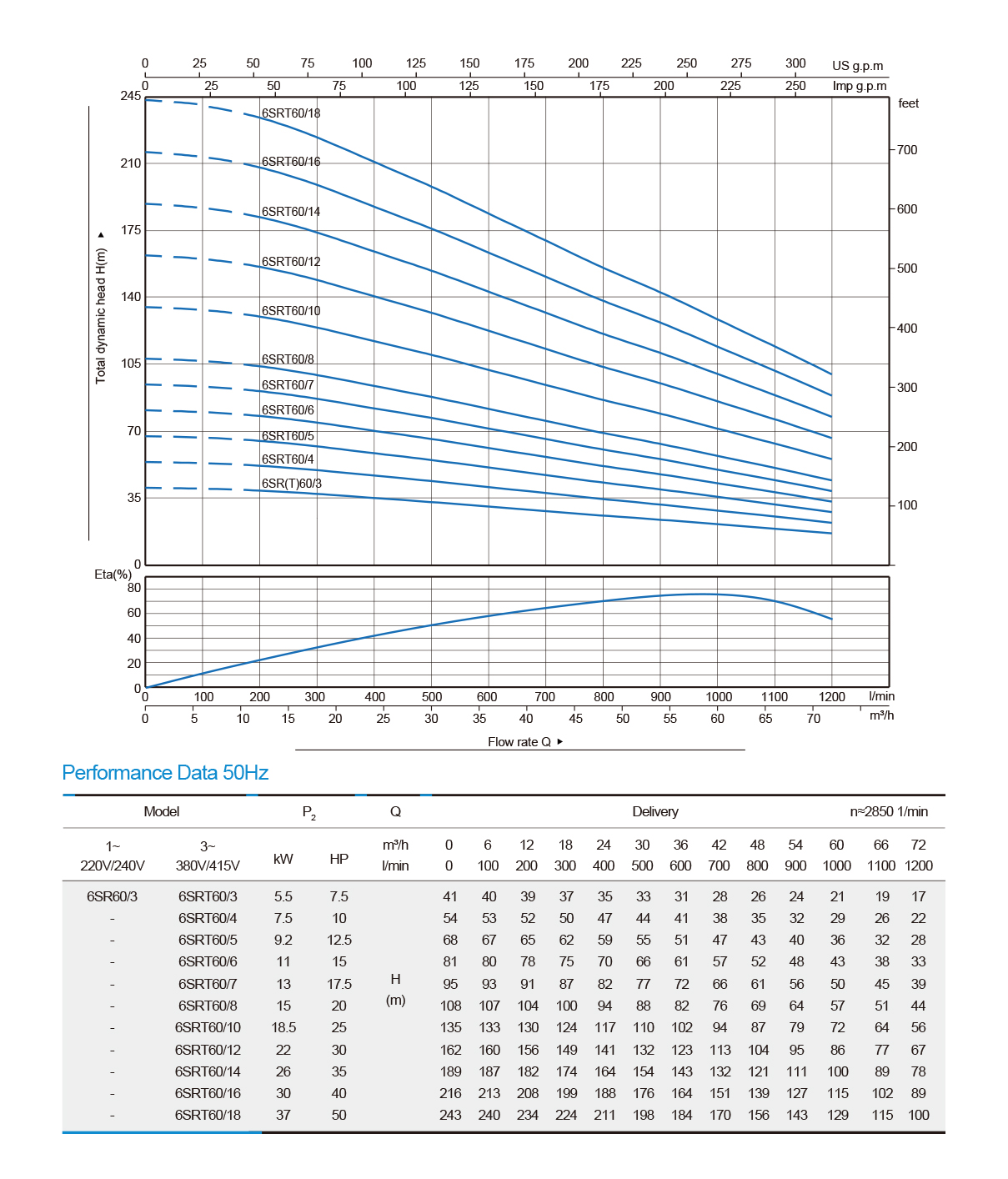

Curve tolerance according to ISO9906

Operating Conditions

Maximum fluid temperature up to ±50℃
Maximum sand content ：0.25%
