Auto Self-Priming JET Pump Series

AUTOSCPM

Model

AUTOSCPM128：0.5 HP

AUTOSCPM146：0.75 HP

AUTOSCPM158：1.0 HP

Accessory

Tank:  24 L/50 L (Stainless steel tank optional)

Flexible Hose:  1" / 1"

Pressure Switch:  ON: 1.4 Bar, OFF: 2.6 Bar

Pressure Gauge:  6 Bar (100PSI)

Brass Connector:  5 Way

Cable:  1.0 meter (On Request)

Operating Limits

Liquid temperature up to 60℃

Maximum ambient temperature 40℃

AUTOSQB

Model

AUTOSQB-60：0.5 HP

AUTOSQB-70：0.75 HP

AUTOSQB-80：1.0 HP

Accessory

Tank: 24L (Stainless steel tank optional)

Flexible Hose: 1"/1"

Pressure Switch: ON: 1.1 Bar, OFF: 1.8 Bar

Pressure Gauge: 6 Bar (100PSI)

Brass Connector: 5 way

Cable: 1.0 meters (On Request)

Operating Limits

Liquid temperature up to 60℃

Maximum ambient temperature 40℃

AUTOSDP

Model

AUTOSDP255：0.75 HP

AUTOSDP355：1 HP

AUTOSDP505：1.5 HP

Accessory

Tank: 19 L/24 L (Stainless steel tank optional)

Pressure Switch: ON: 1.8 Bar, OFF: 2.8 Bar

Pressure Gauge: 6 Bar (100PSI)

Brass Connector: 3 way

Cable: 1.0 meter (On Request)

Operating Limits

Liquid temperature up to 60 ℃

Maximum ambient temperature 40 ℃

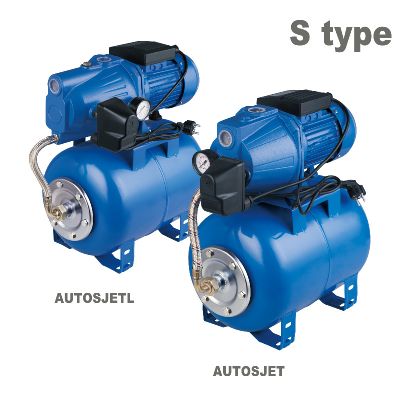

AUTOSJET L TYPE

Model

AUTOSJET-60/60B/60L/60S：0.5 HP

AUTOSJET-80/80B/80L/80S：0.75 HP

AUTOSJET-100/100B/100L/100S：1 HP

Accessory

Tank：24 L (Stainless steel tank optional)

Flexible hose：1"/1"

Pressure Switch：ON：1.8 Bar,  OFF：2.8 Bar

Pressure Gauge：6 Bar (100PSI)

Brass Connector：5 way

Cable：1.0 meter (On Request)

Operating Limits

Liquid temperature up to 60 ℃

Maximum ambient temperature 40 ℃

AUTOSJET S TYPE

Model

AUTOSJET-60/60B/60L/60S：0.5 HP

AUTOSJET-80/80B/80L/80S：0.75 HP

AUTOSJET-100/100B/100L/100S：1 HP

Accessory

Tank: 24 L ( Stainless steel tank optional )

Flexible hose: 1/2"/1/2"

Pressure Switch: ON: 1.8 Bar, OFF: 2.8 Bar

Pressure Gauge: 6 Bar ( 100 PSI )

Cable: 1.0 meter ( On Request )

Operating Limits

Liquid temperature up to 60 ℃

Maximum ambient temperature 40 ℃

AUTOSJETS

Model

AUTOJETS-60：0.5HP

AUTOJETS-80：0.75HP

AUTOJETS-100：1.0HP

Accessory

Tank：24 L S.S

Flexible Hose：1" / 1"

Pressure Switch：ON：1.8 Bar, OFF：2.8 Bar

Pressure Gauge：6 Bar ( 100 PSI )

Brass Connector: 3 Way

Cable: 1.0 meter ( On Request )

Operating Limits

Liquid temperature up to 60 ℃

Maximum ambient temperature 40 ℃

AUTOSJSW

Model

AUTOSJSW-10H：0.75 HP

AUTOSJSW-15H：1.0 HP

AUTOSJSW-10M：0.75 HP

AUTOSJSW-15M：1.0 HP

Accessory

Tank：24 L

Flexible Hose：1" / 1"

Pressure Switch：ON：1.8 Bar, OFF：2.8 Bar

Pressure Gauge：6 Bar ( 100 PSI )

Cable: 1 Meters ( On Request )

Operating Limits

Liquid temperature up to 60 ℃

Maximum ambient temperature 40 ℃
